Product Description
Holly's aquaculture drum filter is developed to address common issues found in traditional filtration systems—such as lack of automation, poor corrosion resistance, frequent clogging, fragile screens, and high maintenance requirements.
As one of the key solid-liquid separation technologies in early-stage aquaculture water treatment, this filter ensures effective removal of solid waste, enabling water recycling and overall system efficiency.
Working Principle
The system consists of four main components:
-
✅ Filter tank
-
✅ Rotating drum
-
✅ Backwash system
-
✅ Automatic water level control system
As aquaculture water flows through the drum filter, fine particles are trapped by the stainless steel mesh (200 mesh / 74 μm). After filtering, the clarified water flows into the reservoir for reuse or further treatment.
Over time, debris accumulates on the screen, decreasing water permeability and causing the internal water level to rise. Once it reaches the preset high level, the automatic control system activates the backwash pump and drum motor, initiating a self-cleaning process.
High-pressure water jets thoroughly clean the rotating screen. The dislodged waste is collected in a dirt collection tank and discharged through a dedicated sewage outlet.
Once the water level drops to the preset low point, the system stops backwashing and resumes filtration—ensuring continuous, clog-free operation.
Product Features
1. Safe, Corrosion-Resistant & Long-Lasting
Made from non-toxic materials and marine-grade stainless steel, safe for aquatic life and suitable for both freshwater and saltwater use.
2. Automatic Operation
No manual intervention needed; intelligent water level control and self-cleaning function.
3. Energy-Saving
Eliminates the high water pressure needs of traditional sand filters, reduces operating costs.
4. Customizable Sizes
Available in various capacities to fit your fish farm or aquaculture facility.
Typical Applications

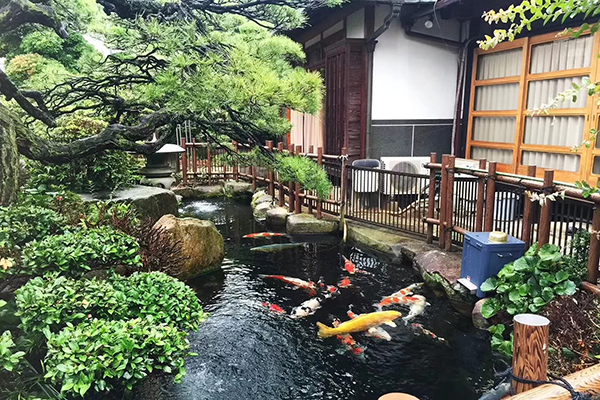

1. Indoor and outdoor fish ponds
Effectively filters solid waste in open or controlled pond systems to maintain optimal water quality.

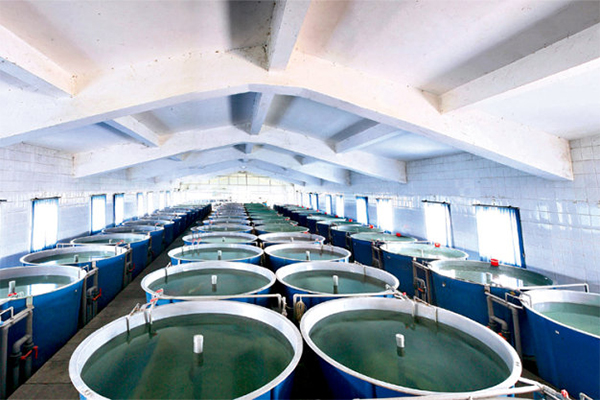

2. High-density aquaculture farms
Helps reduce organic load and ammonia levels, supporting healthy fish growth in intensive farming environments.
3. Hatcheries and ornamental fish breeding bases
Provides clean and stable water conditions crucial for fry and sensitive species.

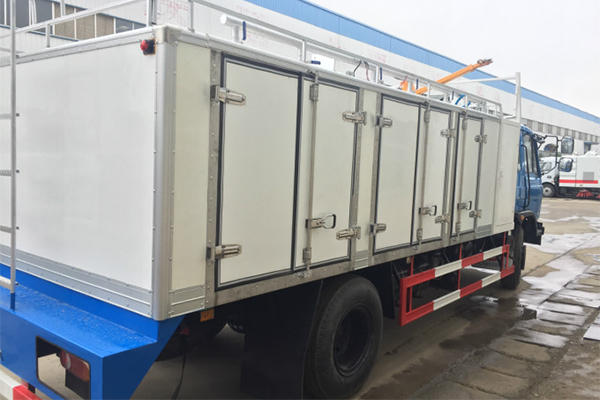

4. Temporary seafood holding and transport systems
Ensures water clarity and reduces stress on live seafood during storage and transit.

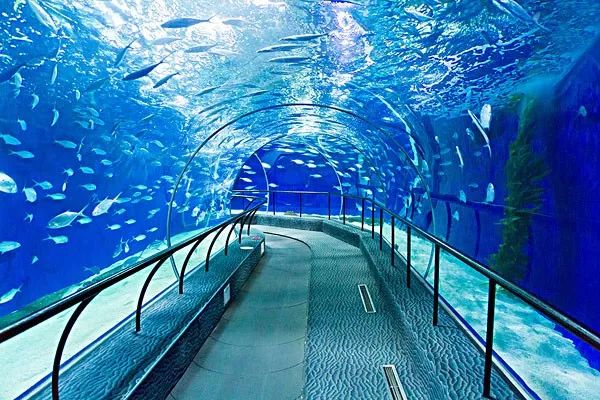

5. Aquariums, marine parks, and display tanks
Keeps exhibition tanks clear of visible debris, supporting both aesthetics and aquatic health.
Technical Parameters
|
Item |
Capacity |
Dimension |
Tank Material |
Screen Material |
Filtration Accuracy |
Drive Motor |
Backwash Pump |
Inlet |
Discharge |
Outlet |
Weight |
|
1 |
10 m³/h |
95*65*70cm |
Brand new PP |
SS304 (Fresh Water) OR SS316L (Salt Water) |
200 mesh (74 μm) |
220V,120w 50Hz/60Hz |
SS304 220V,370w |
63mm |
50mm |
110mm |
40kg |
|
2 |
20 m³/h |
100*85*83cm |
110mm |
50mm |
110mm |
55kg |
|||||
|
3 |
30 m³/h |
100*95*95cm |
110mm |
50mm |
110mm |
75kg |
|||||
|
4 |
50 m³/h |
120*100*100cm |
160mm |
50mm |
160mm |
105kg |
|||||
|
5 |
100 m³/h |
145*105*110cm |
160mm |
50mm |
200mm |
130kg |
|||||
|
6 |
150 m³/h |
165*115*130cm |
SS304 220V,550w |
160mm |
50mm |
200mm |
205kg |
||||
|
7 |
200 m³/h |
180*120*140cm |
SS304 220V,750w |
160mm |
50mm |
200mm |
270kg |
||||
|
202*120*142cm |
SS304 |
Nylon |
240 mesh |
160mm |
50mm |
270kg |
|||||
|
8 |
300 m³/h |
230*135*150cm |
220/380V, 750w, 50Hz/60Hz |
75mm |
460kg |
||||||
|
9 |
400 m³/h |
265*160*170cm |
SS304 220V,1100w |
75mm |
630kg |
||||||
|
10 |
500 m³/h |
300*180*185cm |
SS304 220V,2200w |
75mm |
850kg |
