Product Features
1. High-Pressure Vortex Mixing Technology
Utilizes advanced high-pressure gas-liquid mixing and vortex cutting to generate a high density of nano bubbles. The system is clog-free, easy to maintain, and engineered for long-term, reliable operation.
2. Ultra Fine & Micro Bubble Production
Produces a full spectrum of bubbles ranging from 80nm to 20μm. These ultra fine and micro nano bubbles rapidly saturate water, achieving high gas-liquid dissolution rates and enhanced oxygen delivery.
3. Nano-Scale Gas-Liquid Mixing for Effluent Treatment
Enables nano-scale mixing of liquid and gas, significantly increasing oxygen solubility throughout the water column. With residence times up to 100 times longer than conventional bubbles, it supports full aerobic treatment from bottom to top.
4. Continuous 24/7 Operation
Designed for stable, around-the-clock performance with low energy consumption, minimal noise, and minimal operator intervention.
Typical Applications

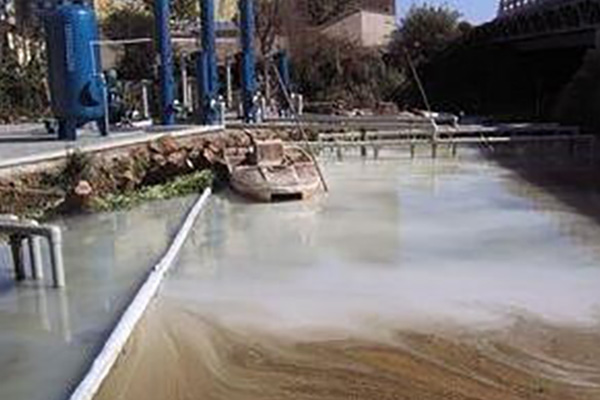

1. Wastewater Treatment
The micro nano bubble generator enhances dissolved oxygen transfer across the water column, supporting efficient aerobic biological processes. Due to their negative charge, nano bubbles attract and bind positively charged pollutants, enabling efficient flotation and separation. This reduces system size requirements and operating costs, providing a scalable, cost-effective solution for wastewater treatment.

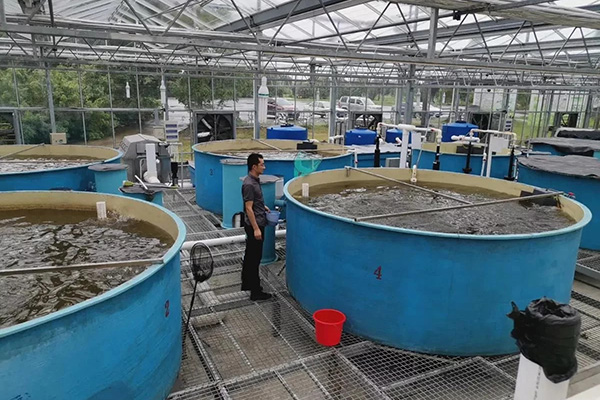

2. Aquaculture
Delivers stable dissolved oxygen levels to aquatic environments, improving fish health, reducing feed consumption, and minimizing the need for medication. Its purification capabilities help maintain optimal water quality while lowering operational and labor costs.

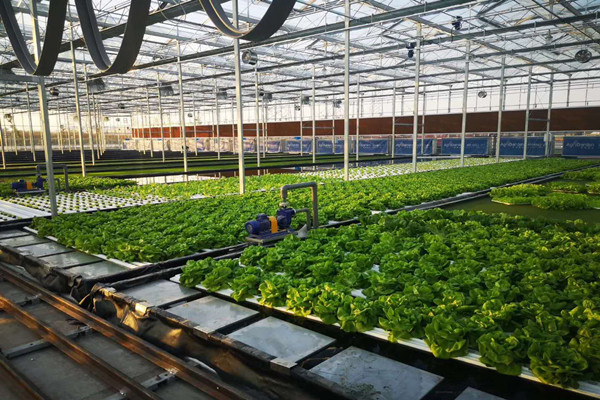

3. Hydroponics
Accelerates plant growth by enriching nutrient solutions with dissolved oxygen and enhancing root zone aeration. Nano bubbles also contribute to the sterilization of hydroponic systems. Vegetables grown in nano bubble-enriched water are typically larger, more vibrant, and better-tasting.
Technical Parameters
| HLYZ-01 | HLYZ-02 | HLYZ-06 | HLYZ-12 | HLYZ-25 | HLYZ-55 | |
| Flowrate (m³/h) | 1 | 2 | 6 | 12 | 25 | 55 |
| Hertz (Hz) | 50Hz | |||||
| Power (kW) | 0.55 | 1.1 | 3.0 | 5.5 | 11 | 18.5 |
| Dimensions (mm) | 660*530*800 | 660*530*800 | 850*550*850 | 860*560*850 | 915*678*1280 | 1100*880*1395 |
| Working Temperature (°C) | 0-100℃ | |||||
| Treatment Capacity (m³) | 120 | 240 | 720 | 1440 | 3000 | 6600 |
| Bubble Diameter | 80nm-200nm | |||||
| Gas-Liquid Mixing Ratio | 1:8-1:12 | |||||
| Gas-Liquid Dissolution Efficiency | >95% | |||||
| HLYZ-01 | HLYZ-03 | HLYZ-08 | HLYZ-17 | HLYZ-30 | HLYZ-60 | |
| Flowrate (m³/h) | 1 | 3 | 8 | 17 | 30 | 60 |
| Hertz (Hz) | 60Hz | |||||
| Power (kW) | 0.75 | 1.5 | 4 | 7.5 | 11 | 18.5 |
| Dimensions (mm) | 660*530*800 | 660*530*800 | 850*550*850 | 860*560*850 | 915*678*1280 | 1100*880*1395 |
| Working Temperature (°C) | 0-100℃ | |||||
| Treatment Capacity (m³) | 120 | 360 | 960 | 2040 | 3600 | 7200 |
| Bubble Diameter | 80nm-200nm | |||||
| Gas-Liquid Mixing Ratio | 1:8-1:12 | |||||
| Gas-Liquid Dissolution Efficiency | >95% | |||||
